Urban and industrial hygiene management has become a priority in our modern society. Cleaning of city streets, squares, avenues and sidewalks is fundamental for public health and environmental protection. While for industrial areas it is essential to have environments free from dirt and materials that allow people to work safely. The street sweeper is the tool that allows you to tackle these cleaning challenges. But to do it in an efficient and ecological way, you need a machine that is not only high-performing but also innovative. From this concept was born the brand new and revolutionary Comac HP4000 street sweeper. This mechanical and vacuum machine represents a step forward in the evolution of Comac street sweepers, bringing with it a new era of excellence in urban and industrial cleaning.
HP4000: the revolutionary mechanical and vacuum sweeper
HP4000 is not simply a new street sweeper; it is a versatile cleaning solution designed to excel in various environments, including urban areas, industrial facilities, warehouses or car parks. Thanks to its reduced water consumption, it is particularly well-suited for cleaning industries and cement plants with substantial dust.
But what makes it unique? The answer lies in the TwinAction technology, enabling the Comac HP4000 street sweeper to combine the strength of mechanical action, focused on collecting larger residues, with the effectiveness of the vacuum action for finer dust. This results in excellent cleaning outcomes with a single machine and in a single pass. And this is precisely one of the distinctive features that sets the HP4000 apart.
How does the TwinAction system of the Comac HP4000 street sweeper work?
The technology behind the extraordinary performance of the HP4000 mechanical and vacuum street sweeper is the TwinAction System, a unique solution designed by Comac to maximize cleaning efficiency. In fact, this system is able to merge the performance of two in a single machine:
- The strength of the mechanical action allows you to collect bulky waste, branches and leaves.
- The efficiency of the vacuum action allows you to capture even the finest dust.
But how does the TwinAction work? The side brushes of the sweeper move the material to be collected to the center towards the central brush. This then in turn, thanks to the force of the mechanical action, collects the dirt from the ground and directs it towards a rotating shaft equipped with hammers capable of shredding and grinding the debris. The power of the vacuum action at this point allows the shredded waste to pass through the vacuum channel to the collection hopper, which, thanks to a particular system, will first fill the rear and then the front. Moreover, the possibility of installing automatic scrapers to clean the vacuum channel also promotes proper passage of debris in every situation. The dirty air then passes through the filter unit for further purification and is finally returned to the outside clean. In fact, the filters with which the HP4000 industrial sweeper is equipped allow it to retain PM10 and PM2.5 fine particles.
Minimize water consumption and optimize resources with HP4000 street sweeper
Comac HP4000 stands out for being a cutting-edge street sweeper, capable of combining a distinctive design with the latest technologies. This street cleaning machine offers high performance and reduces waste, with a notable advantage: the ability to work efficiently without the constant need for water. In fact, water is only used during auxiliary functions to reduce dust on the side brushes, when unloading waste or with the pressure washer. With the Comac HP4000 street sweeper, water consumption undergoes a considerable reduction, thus allowing exceptional savings in terms of resources and money. By using this mechanical and vacuum sweeper, it is possible to save up to 150,000 liters of water in a year. This represents a tangible contribution not only to environmental sustainability but also to the management of water resources, which as we well know are increasingly precious.
Exceptional performance, maneuverability and robust design: this is the distinctive character of the HP4000 street sweeper
The combination of exceptional performance, maneuverability and robust design makes the Comac HP4000 street sweeper an excellent ally for urban and industrial cleaning. Every detail of this machine is designed to overcome daily challenges, offering impeccable cleaning results, maximum operating comfort and durability that goes beyond expectations. Let’s take a closer look at the distinctive features that make the HP4000 the ideal choice for the most demanding cleaning needs.
High Cleaning Performance
Equipped with a hydraulically driven and adjustable central brush, the HP4000 ensures impeccable cleaning on every surface. This is also thanks to the water atomizing nozzles positioned on the side brushes which allow complete control of dust during the sweeping action. Meanwhile, effective cleaning even in reverse and automatic adjustment of brush pressure guarantee high performance in any operation and on any type of terrain.
Extremely comfortable, safe and manoeuvrable

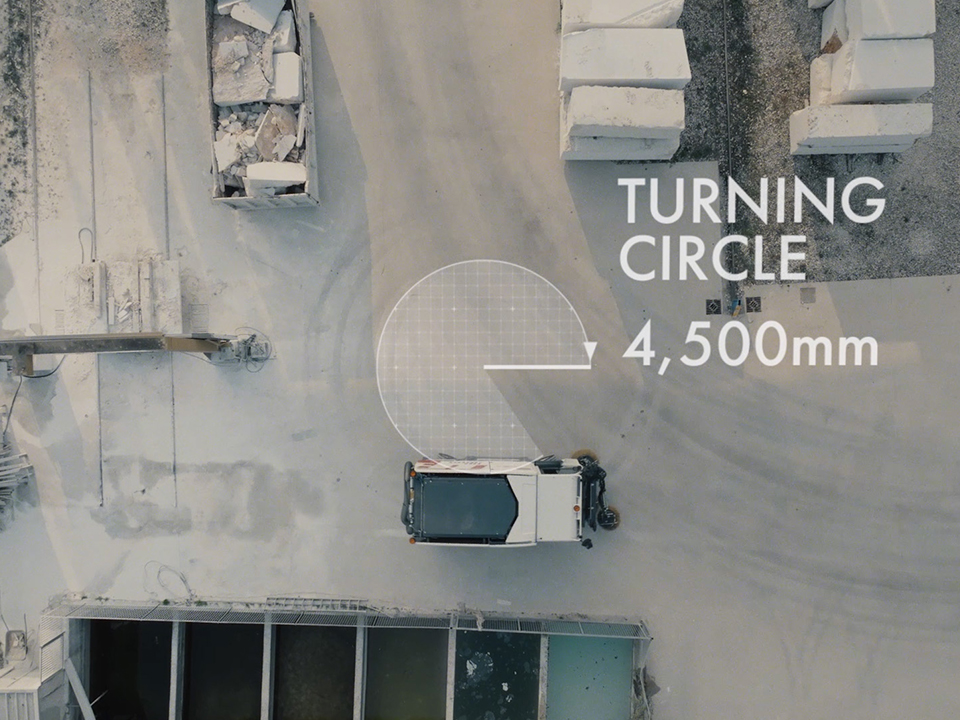

The intelligent 4-wheel steering system of the HP4000 allows for high maneuverability of the sweeper. The rear-wheel steering lock offers comfort even on long stretches of road without bends. Meanwhile, the 4 independent suspensions guarantee excellent road holding even when fully loaded, ensuring great comfort when traveling over bumps and pavements. The LED headlights complete the picture, guaranteeing full visibility to carry out cleaning operations in total safety.
Increased collection capacity thanks to the large hopper
Thanks to the 4.1 cu.m flat-bottomed collection hopper, the HP4000 mechanical sweeper enables continuous work without the need for frequent stops to empty. To enhance user convenience, the street sweeper is equipped with a container filling sensor that alerts when it’s time for emptying. Another notable feature of this mechanical and vacuum sweeper is its vacuum channel with a reverse cone design, facilitating the passage of debris.
Quick and easy waste dumping operations
The HP4000 mechanical and vacuum sweeper is equipped with a hydraulic control, facilitating the opening and closing of the tailgate during the unloading phases. With two options for the waste container emptying system—high or low—the HP4000 can adapt to various emptying needs. Additionally, the dust elimination kit with a high-pressure washer has been designed to keep the machine and the surrounding area clean, preventing dust dispersion during container emptying.
Durability and reduced maintenance over the years
The HP4000 street sweeper is equipped with the By-pass system, allowing the diversion of airflow to exclude the filter in wet conditions. On the other hand, the coaxial turbine ensures excellent performance, reducing the need for maintenance interventions. Additionally, the double electric filter shaker simplifies filter maintenance operations, contributing to the long-term durability of the Comac HP4000.
Sweeping system designed for maximum efficiency
Comac has meticulously designed the sweeping system of the HP4000 street sweeper with the goal of maximizing efficiency and versatility. The adjustable side brushes ensure thorough cleaning on any surface. Additionally, with the side brush tracking kit, the machine consistently follows the ground profile, ensuring excellent results, even on bends. The brush pressure adjustment kit allows adaptation to different surfaces, and the ability to adjust the inclination facilitates easy work on bumps and uneven pavements. Featuring a diameter of 900 mm, the side brushes can handle various surfaces, directing even heavy and bulky materials, such as glass bottles, branches, and pieces of wooden packaging, toward the center.
HP4000 achieves the unattainable with its swinging brush
A distinctive feature of the HP4000 is its swinging third brush. This brush, unique to the machine, reaches even the most distant debris, effectively guiding it towards the central brushes. With a wide opening and the ability to rotate up to 180°, the swinging brush offers extraordinary maneuverability. The specific mechanism allows the brush to move from right to left, collecting residues deposited on both sides of the road. You can adjust the height, inclination, and angle of the tilting brush to comfortably and precisely clean walls and pavements. During periods of non-use, the raised position of the tilting brush facilitates the movement of the machine, ensuring maximum operational efficiency.
Driving experience on the HP4000: a blend of comfort and technology
Driving the Comac HP4000 industrial sweeper transforms the experience into a seamless fusion of advanced technology and unparalleled comfort. The driver’s cab provides wide visibility, even on the front brushes, which can be controlled directly from the driver’s seat. Whereas, the pneumatic seat, isolated by anti-vibration supports, ensures maximum comfort, making even the longest work sessions enjoyable. The cabin is fully customizable, offering premium features such as a superior driver’s seat, air conditioning, and Bluetooth radio, creating a unique environment for HP4000 street sweeper users. Moreover, the rear camera and camera on the inlet enable the driver in the cab to constantly monitor the surrounding space and the collection flow.
The integration of advanced technology with practicality is evident through the 10″ touchscreen display for controlling work functions and a 4.5″ display for driving assistance information. Additionally, the central console, equipped with an emergency button for an immediate stop in critical situations, is designed to ensure safe and interactive driving.
The steering wheel is user-friendly, and the controls are intuitive, positioned for easy accessibility from the working position, contributing to effortless driving. Furthermore, real-time anomaly detection allows the operator to intervene promptly, minimizing the risk of damaging the machine. The HP4000 is not just a sweeper; it is an intelligent and reliable companion designed to tackle the challenges of urban and industrial cleaning with complete peace of mind.
Easy Fleet: intelligent fleet management
Comac’s Easy Fleet system represents a significant advancement in the optimization of urban and industrial sweeping operations, and it has been implemented on the HP4000 street sweeper. This cutting-edge technology enables the complete digitalization of activities, fostering seamless communication with the street sweepers within the fleet. The data specifically collected by this system is transformed into valuable and timely information, providing a detailed, real-time overview of cleaning operations.
Accessible from anywhere via smartphone, tablet, and PC, Easy Fleet allows for immediate control and effective management of street sweepers. This innovative system enhances the coordination of activities and optimizes the overall performance of the HP4000, all with the goal of reducing operating costs.
Comac HP4000 street sweeper: an investment for the future
Comac HP4000 street sweeper represents a revolution in urban and industrial hygiene. With its extraordinary performance and sustainable approach, we envision this machine becoming the benchmark in the urban hygiene sector. Its ability to combine mechanical and suction action, coupled with reduced water consumption, makes it the ideal choice for comprehensive and efficient cleaning in any scenario. Additionally, the HP4000 street sweeper helps reduce fine particle emissions and water waste, making it an eco-friendly choice. Investing in a Comac HP4000 means investing in the future, ensuring a cleaner and more sustainable environment for everyone. If you are in search of a street sweeper or are comparing various mechanical and aspirating street sweepers, feel free to contact us; a network of authorized Comac distributors is at your complete disposal.
